RISC-V KernelCI bridge

FastAPI app that provides REST services which give any maintainer or kernel developer a simple way of submitting tests to KernelCI without adjusting any existing infrastructure to KernelCI's needs.

The project makes use of KCIDB to submit results, meaning you'll need a token to perform submissions. To obtain a token please follow the instructions described in KCIDB github repository.

Project layout

docker-compose-dev.yml    # Docker compose file to use in development
docker-compose.yml        # Docker compose file to use in production
Makefile                  # Used to run typically used commands
log.ini                   # Logging configuration file
caddy/
    Caddyfile             # Caddy configuration file
backend/
    Dockerfile            # FastAPI app Dockerfile
    app/
        app/              # FastAPI app main directory
            api/          # Main API directory
                v1/
                    endpoints/          # Contains all endpoint implementations
                        builds.py       # Submit a build endpoint
                        tests.py        # Submit tests endpoint
                        boot.py         # Submit boot tests endpoint
                        ...
                    api.py              # Gathers all endpoints into a single router
            core/
                config.py               # Contains main settings class
                db.py                   # Handles DB specific settings
                runners.py              # Contains all general runner functions
            middleware/                 # All middlewares go here
                json_middleware.py      # Specific for wrongly formed json sent by TuxSuite
            models/                     # Database models (use SQLModel/SQLAlchemy)
                builds.py
                tests.py
            schemas/                    # Pydantic schemas used when parsing requests bodies
                builds.py               # Models for the submit build service
                tests.py                # Models for the submit tests service
                ...
            services/                   # Contains code that connects to third-party services (runners may be added here)
                kcidb_services.py       # KCIDB related functions
                runner_service.py       # General runner functions
                ...
            utils/                      # Utilitary functions and classes
                exceptions.py
                test_parser.py
            main.py                     # Defines the main FastAPI app
        pypoetry.toml
        poetry.lock

Sytem design

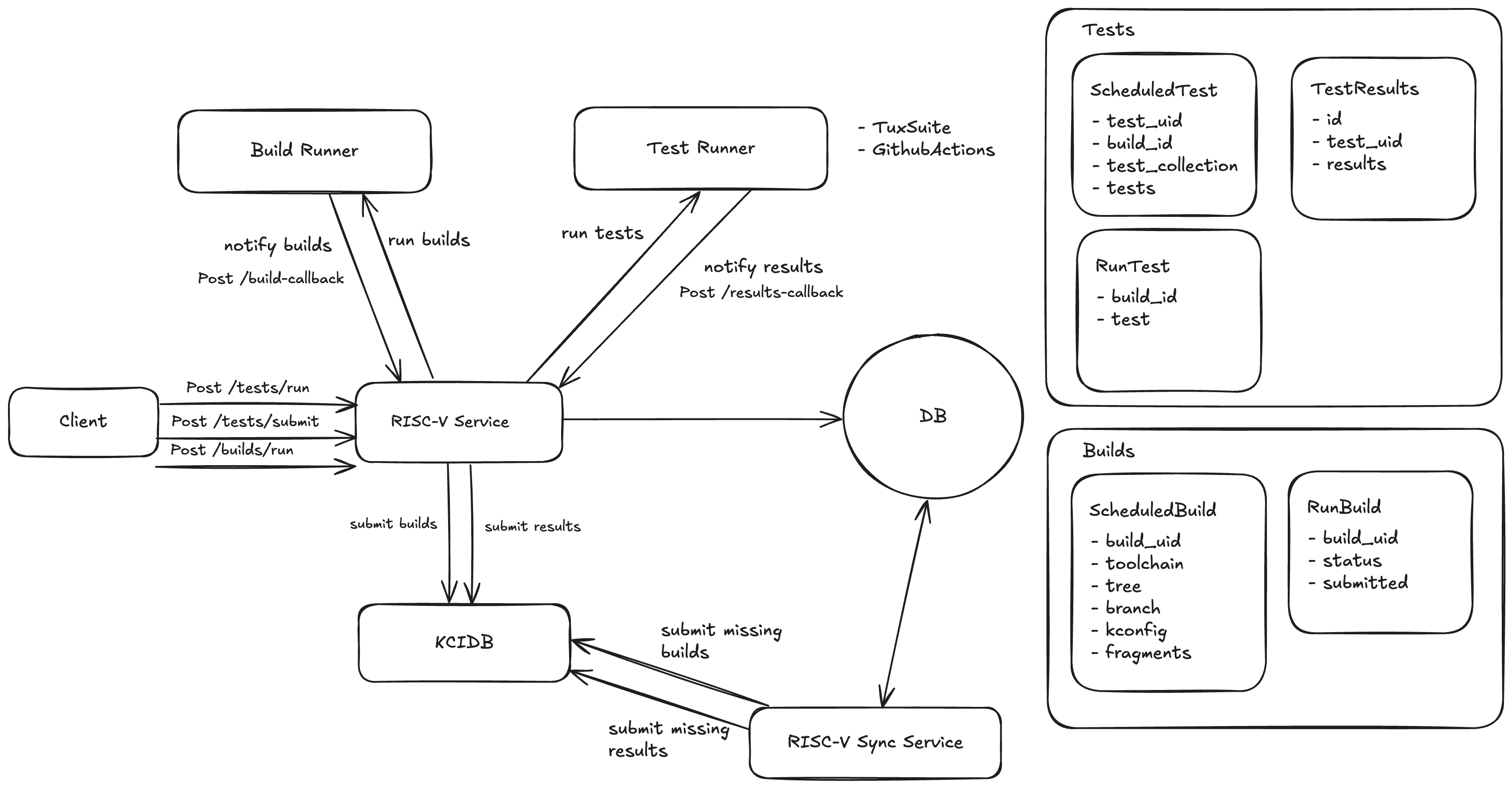

Below there is a diagram portraing the design of the system:

Available services

The app provides services that allow running kernel tests and builds, and submit tests. There is a separate sync service which is meant to be called once a day to retry failed submissions.

Run tests

The endpoint is /api/v1/tests/run. To run tests you need to send a POST HTTP request with a body with this structure:

    {
        "runner": "string",
        "build_id": "string",
        "kernel_image_url": "string",
        "modules_url": "string",
        "tests": [
            "string"
        ],
        "collection": "string"
    }

The specific details on each of the fields can be found in the TestSuite schema.

Run boot tests

The endpoint is /api/v1/boot-test/run. To run boot tests you need to send a POST HTTP request with a body with this structure:

    {
        "runner": "string",
        "build_id": "string",
        "kernel_image_url": "string",
        "modules_url": "string"
    }

The specific details on each of the fields can be found in the TestSuite schema.

Run builds

The endpoint is /api/v1/builds/run. To run builds you need to send a POST HTTP request with a body with this structure:

    {
        "runner": "string",
        "toolchain": "string",
        "tree": "string",
        "branch": "string",
        "kconfig": "string",
        "fragments": [
            "string"
        ]
    }

The specific details on each of the fields can be found in the BuildData schema.

Submit tests

Tests can be run in an outside system but still use this app to submit results to KernelCI. To do so you have to send a POST HTTP to /api/v1/tests/submit request with a body with this structure:

    {
        "test_uid": "string",
        "build_id": "string",
        "tests": [
            {
            "test_name": "string",
            "test_collection": "string",
            "result": "string",
            "logs": "string"
            }
        ]
    }

The specific details on each of the fields can be found in the RunnerTestsResults schema.

Synchronize submissions

A POST HTTP to /api/v1/sync/results synchronizes non-submitted tests results. While /api/v1/sync/builds synchronizes non-submitted builds.

Both of these services expect and empty body.

This endpoints correspond to the RISC-V Sync Service seen in the system diagram.
